In modern power systems, efficient and reliable equipment is essential for ensuring seamless energy distribution and safety. One such vital component is gas insulated switchgear (GIS), which has gained significant popularity for its compact design, durability, and ability to handle high-voltage applications.
By deploying gas-insulated switchgear in power systems, businesses can enhance performance, safety, and overall reliability. This blog will explore the benefits of using gas insulated switchgear in power systems and why it is increasingly preferred in industrial and utility applications.
What is Gas Insulated Switchgear?

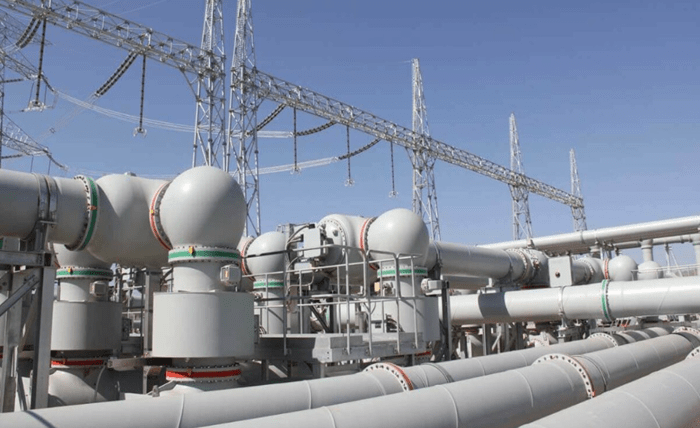

Gas insulated switchgear is an advanced type of electrical equipment used in medium and high-voltage power systems. Unlike traditional air-insulated switchgear, which uses air as the primary insulating medium, GIS relies on a gas, often sulfur hexafluoride (SF6), for insulation. The gas-insulated design allows GIS to operate more efficiently while taking up less space compared to other types of switchgear.
GIS is known for its compactness and ability to work in confined spaces. It offers excellent protection against environmental factors, which makes it highly suitable for indoor installations or areas where the environment may be harsh or prone to contamination.
Key Benefits of Gas Insulated Switchgear
To understand the working of an efficient gas insulated switchgear, take a look at the benefits of this equipment:
- Compact Design
One of the standout features of gas insulated switchgear is its compact and space-saving design. Traditional air-insulated switchgear requires more room due to the large spacing between electrical components. In contrast, GIS uses gas to insulate the electrical equipment, which allows the components to be housed in a much smaller enclosure. This reduced footprint is especially advantageous in urban environments, substations, or industries with limited space for electrical infrastructure.
By incorporating gas insulated switchgear, businesses can optimise the use of their available space, allowing for the deployment of other equipment or facilities within the same area. This is particularly important in high-density areas where space is at a premium.
- High Reliability and Longevity
Reliability is a crucial factor in power systems, and gas insulated switchgear is designed to meet the highest standards of performance. The sealed design protects the internal components from external factors such as moisture, dust, and pollution, which are common causes of equipment failure in air insulated systems. This leads to longer service life and reduced risk of operational downtime.
The use of gas as an insulating medium also enhances the durability of the switchgear. GIS is less likely to experience wear and tear due to environmental conditions, making it a dependable option for critical applications such as substations, industrial plants, and power generation facilities.
- Enhanced Safety Features
Safety is a top priority in power systems, and gas insulated switchgear offers significant advantages in this regard. The enclosed, gas-filled design ensures that all live parts are well-protected from accidental contact, reducing the risk of electrical faults and short circuits. This level of protection is essential in industrial settings where high-voltage equipment is often operated in proximity to personnel.
Moreover, GIS is equipped with advanced safety mechanisms such as circuit breakers, which can quickly isolate faulty sections of the system, preventing cascading failures and ensuring the safety of both the equipment and the workforce. The robust design also makes GIS resistant to external shocks, further minimising the risk of accidents.
- Low Maintenance Requirements
One of the primary benefits of gas insulated switchgear is its minimal maintenance requirements. The enclosed structure of GIS ensures that the internal components are protected from environmental elements, which greatly reduces the need for regular inspections or repairs. Unlike air-insulated systems, which may require frequent cleaning and maintenance due to exposure to contaminants, GIS can operate for extended periods with little to no intervention.
This low-maintenance nature of GIS makes it an attractive option for industries where operational efficiency and cost-effectiveness are critical. By employing gas insulated switchgear, businesses can significantly reduce their maintenance costs while ensuring the long-term performance of their power systems.
- Suitability for Harsh Environments
Gas insulated switchgear is particularly well-suited for environments that are prone to extreme conditions such as high humidity, dust, pollution, or corrosive atmospheres. The sealed design of GIS provides excellent protection against these factors, ensuring stable and reliable operation even in the harshest environments.
Industries located in coastal regions, chemical plants, or areas with extreme weather conditions can benefit greatly from incorporating GIS into their power systems. The ability to perform consistently in these environments makes GIS an ideal solution for a wide range of applications.
- Efficient in High-Voltage Applications
For high-voltage power systems, gas insulated switchgear offers unmatched performance and efficiency. The gas insulation allows GIS to handle higher voltage levels with ease, making it ideal for large-scale industrial operations, power generation plants, and utility substations. The compact design also makes GIS easier to install and manage in high-voltage applications, where space is often limited.
With the ability to efficiently manage large electrical loads and provide high levels of insulation, GIS helps ensure smooth and reliable power distribution, even in the most demanding applications.
- Environmentally Friendly Option
While gas insulated switchgear primarily uses SF6 gas, which has a high global warming potential, ongoing developments are highly focused on reducing the environmental impact of GIS. Some modern GIS systems use alternative gases or incorporate technologies to minimise SF6 emissions during operation. This makes GIS an increasingly eco-friendly option for power systems, as it allows for efficient energy distribution while adhering to environmental regulations.
The Importance of Partnering with Reputable Energy Brands
When it comes to selecting and deploying gas insulated switchgear, partnering with reputable energy brands is essential. These companies have the expertise and resources to ensure that the equipment is installed correctly, operates reliably, and meets the specific requirements of your power systems. High-quality equipment from trusted brands is designed to comply with industry standards, offering better performance and safety features.
Additionally, working with established energy brands provides access to ongoing support, maintenance, and upgrades, ensuring that your gas insulated switchgear continues to perform optimally over its service life.
